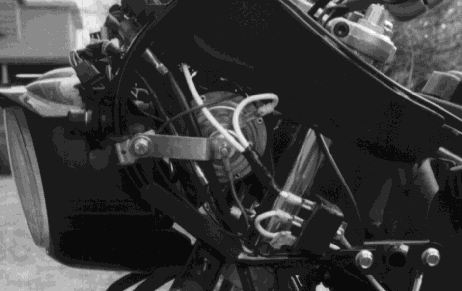

TDM HORN REPLACEMENTby Jody Levine & Louis-Charles Lavall?eHere is the Left side of Jody and Louis-Charles' '92 TDM. The round metal blob is the back of a Fiamm car horn, and it's attached to the front subframe with the mounting bracket that came with the horn and a piece of galvanized strapping. There is another one similarly installed on the other side (these are a hi-pitch and low-pitch set). To the right and down is a headlight relay that is zip-tied to the subframe. Note the huge wires running about. You need at least 12 AWG if you want them to be loud! With the fairing replaced, you can't see them at all, but hang on tight the first time you hit the button.....
|
|
